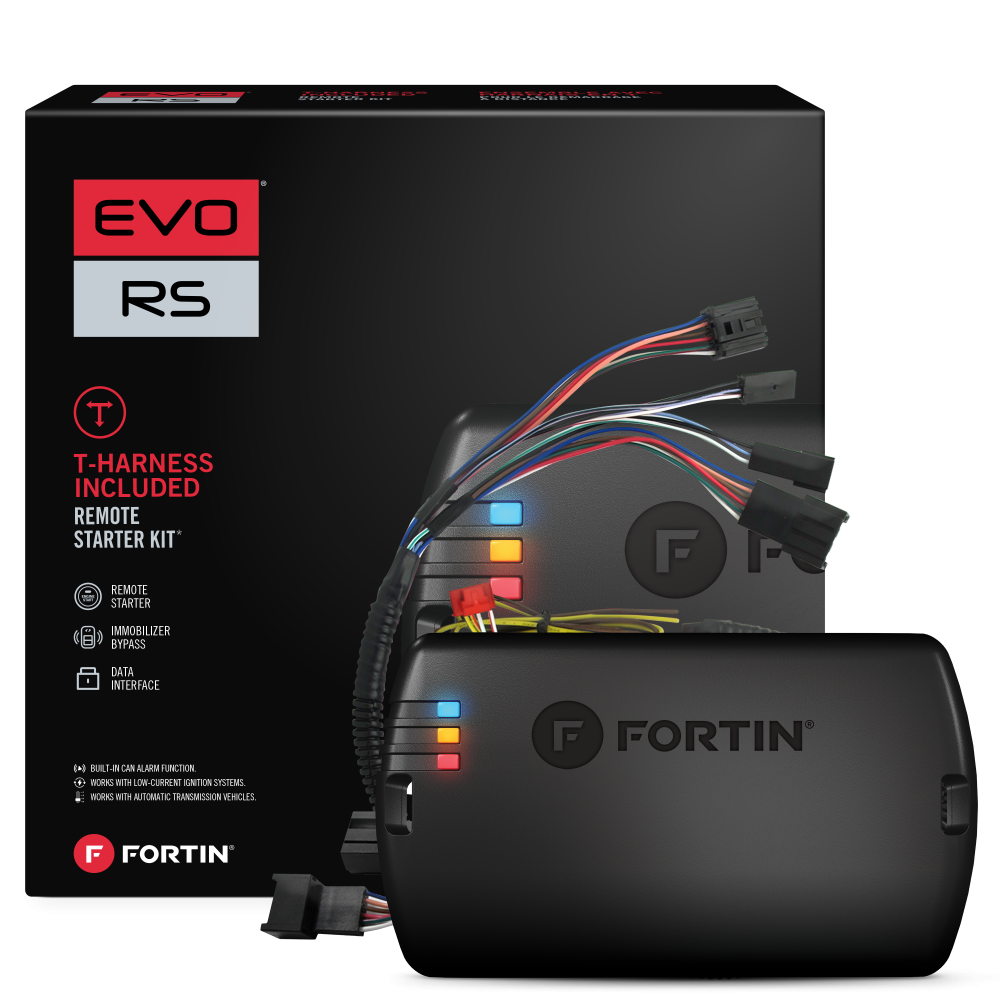

FORTIN T-HARNESS FOR 2014+ GM/CHEVY TRUCKS/SUVS (EVOGMT5)

EVO-GMT5

Module & T-Harness combo for Cadillac, Chevrolet & GMC Full Size vehicles.

THIS PRODUCT MUST BE SOLD, INSTALLED AND SUPPORTED BY A PROFESSIONAL.

The EVO-GMT5 is the ultimate Factory Fit, ALL-IN-ONE data immobilizer bypass, door lock, alarm & remote start interface with T-Harness combo module for Chevrolet & GMC full size vehicles.
It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple bus architecture with 10 separate communication ports that provide more complete functionality on every supported vehicle.

The Fortin T-Harness for 2014+ GM/Chevy Trucks/SUVs (EVOGMT5) is a module and T-harness combo for Chevrolet and GMC full-size vehicles. It includes a data immobilizer bypass, door lock, alarm, and remote start interface. The T-harness weighs 2 lbs. The EVO-GMT5 is a plug and play kit for 2014+ Chevrolet and GMC trucks and SUVs with a remote start starter. It is factory fit and requires installation and support by a professional.

3 x CAN-Bus controllers.
3 x General purpose controllers (J1850, Class 2, encrypted key etc.).
1 x On-board relay (SPDT).
1 x On-board relay (DPDT).
1 x Analog controller 0-12VDC @ 20mV steps (Passlock, MUX).
3 x On-board LEDs for simplified programming and diagnostics.
1 x Factory Fit T-Harness for easy install.
1 x 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems. [5]
1 x 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.
Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.



Additional information

Weight 2 lbs
