Description
FORTIN VW COMBO INTERFACE WITH T-HARNESS (EVOVWT6)
EVO-VWT6
Module & T-Harness combo for Volkswagen and Audi vehicles.
Evo-All module & T-Harness combo for select Volkswagen vehicles. The EVO-VWT6 is the ultimate Factory Fit, ALL-IN-ONE data immobilizer bypass, door lock, alarm & remote start interface with T-Harness combo module for select Volkswagen vehicles.
It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple bus architecture with 10 separate communication ports that provide more complete functionality on every supported vehicle.
3 x CAN-Bus controllers.
3 x General purpose controllers (J1850, Class 2, encrypted key etc.).
1 x On-board relay (SPDT).
1 x On-board relay (DPDT).
1 x Analog controller 0-12VDC @ 20mV steps (Passlock, MUX).
3 x On-board LEDs for simplified programming and diagnostics.
1 x Factory Fit T-Harness for easy install.
1 x TB-VW [7]
1 x 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems. [6]
1 x 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.
Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.

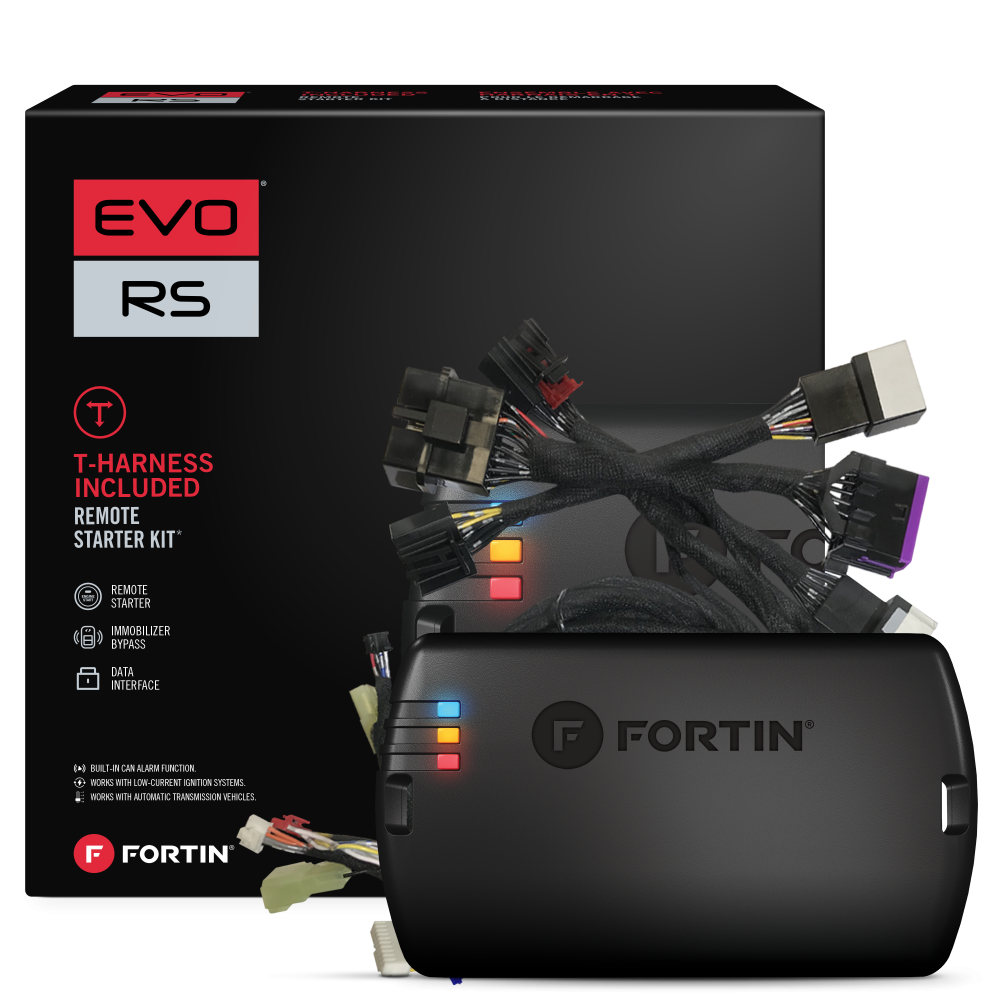

1x EVO-ALL Control Module [1] [3]
1x OEM-Style Vehicle-Specific Factory-Fit T-Harness Cable [4]
- 1x Warning Label [3]
- 1x 4-pin Fortin 2-way data-link harness [2]
- 1x TB-VW [5]
